Products Show
| Level Use Group | B | C | D |
| Rated Voltage Rate Voltage [V] | 300 | - | 300 |
| Rated current | 8 | - | 8 |
| Wire Range [AWG] | / | ||
| Contact Resistance | 1.6kv | ||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage [V] | 160 | 160 | 320 |
| Rated Current [A] | 7 | 7 | 7 |
| Impulse withstand voltage [KV] | 2.5 | 2.5 | 2.5 |
| Conductor cross section [mm2] | / | ||
| Insulation Material | PA66 |
| Flame relardant rating | UL94V-0 |
| Conductor Material | Copper alloy |
| Plating of conductor surface | Sn Plated |

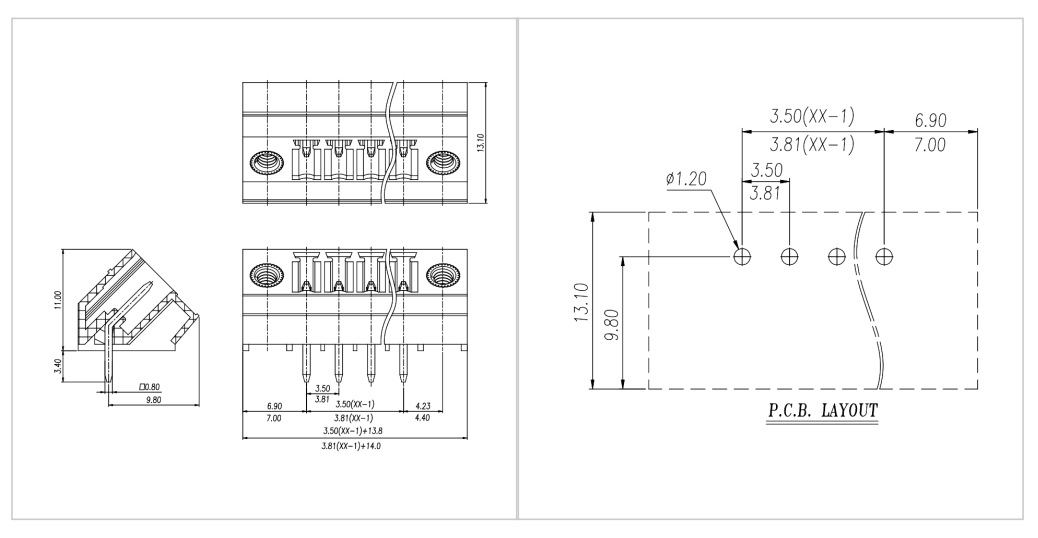

| Pitch/Poles [mm]/[P] | 3.5,3.81/2~24 |
| Stripping Length [mm] | / |
| Screw/Torque(Max)[N.m] | / |
| Operating temperature [℃] | -40~+105 |
| Soldering temperature | 250℃/5S |
| Pin dimensions [mm] | 0.8*0.8 |
| PCB Hole Diameter [mm] | ∅1.2 |
