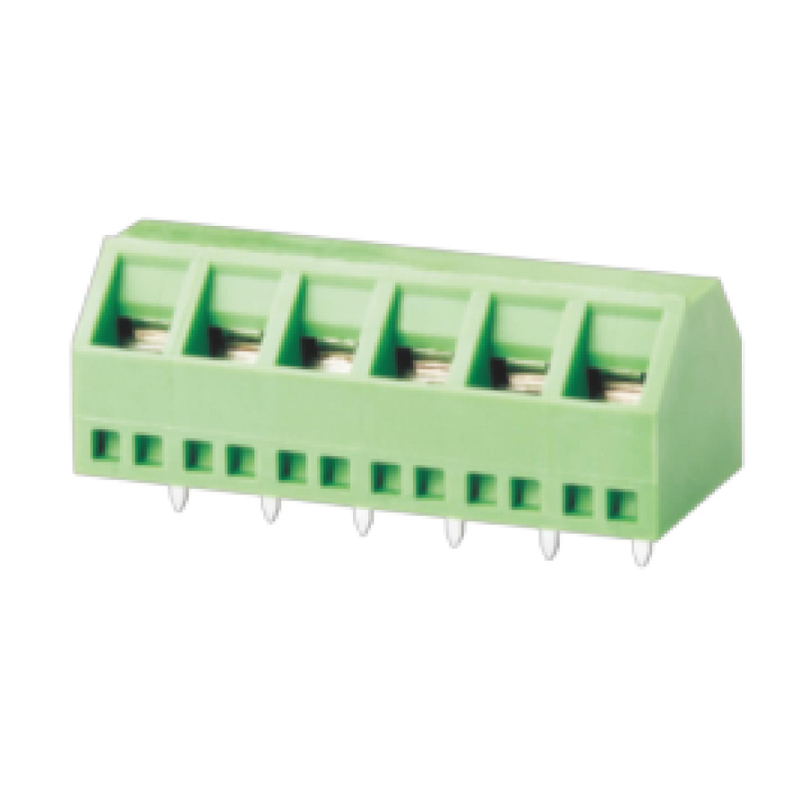

Products Show
| Level Use Group | B | C | D |
| Rated Voltage Rate Voltage [V] | 300 | - | 300 |
| Rated current | 15 | - | 10 |
| Wire Range [AWG] | 26~14 | ||
| Contact Resistance | 1.6kv | ||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage [V] | 250 | 400 | 630 |
| Rated Current [A] | 17.5 | 17.5 | 17.5 |
| Impulse withstand voltage [KV] | 4 | 4 | 4 |
| Conductor cross section [mm2] | 0.5~1.5 | ||
| Insulation Material | PA66 |
| Flame relardant rating | UL94V-0 |
| Conductor Material | Copper alloy |
| Plating of conductor surface | Sn Plated |
| Pitch/Poles [mm]/[P] | 5.08/2~24 |
| Stripping Length [mm] | 6~7 |
| Screw/Torque(Max)[N.m] | M3/0.5 |
| Operating temperature [℃] | -40~+105 |
| Soldering temperature | 250℃/5S |

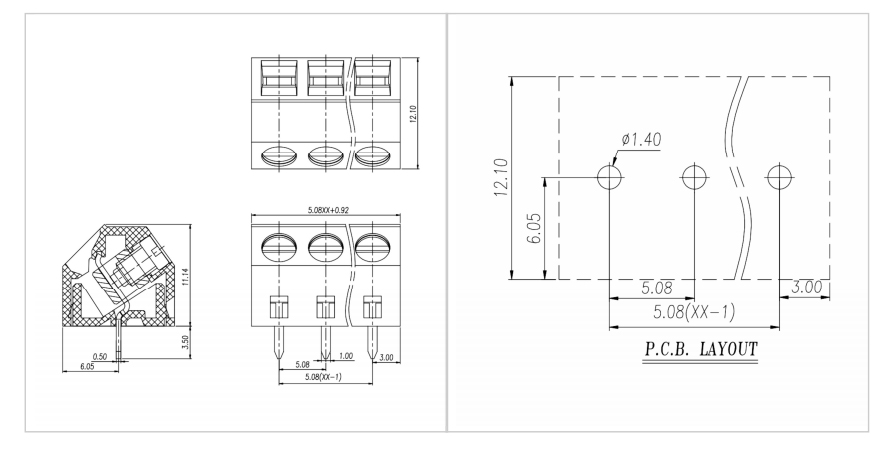

| Pin dimensions [mm] | 0.5*1.0 |
| PCB Hole Diameter [mm] | ∅1.4 |
