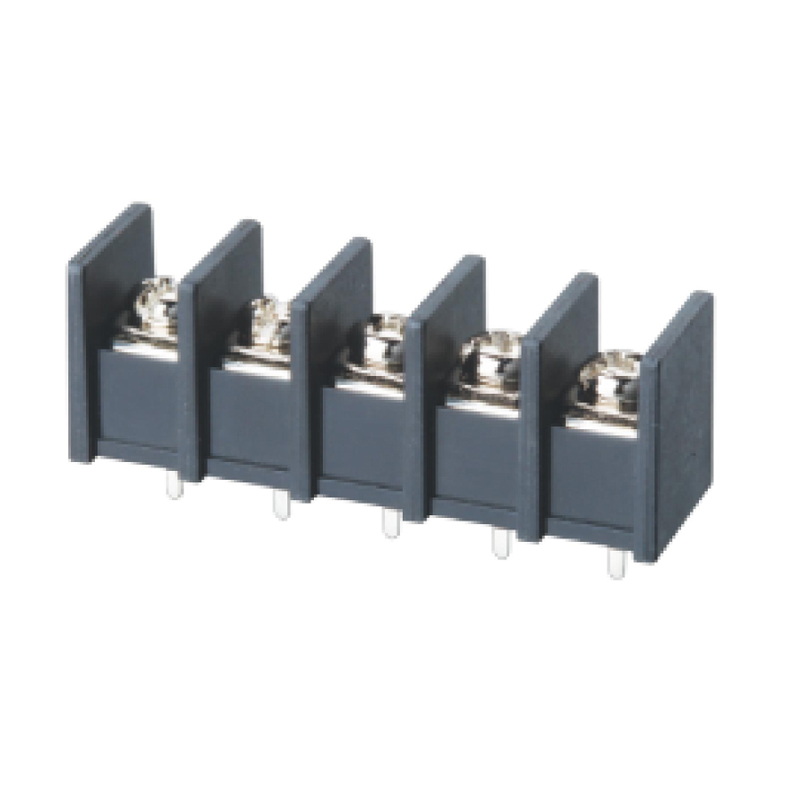

产品展示
| 螺丝 Screws | M3.0 Steel Ni plated |
| 焊脚 Pin Header | Copper alloy，Sn plated |
| 塑件 Housing | PA66，UL94-0 |
| 参考标准 Standard | UL | IEC |
| 额定电压 Rated voltage | 300V | 250V |
| 额定电流 Rated current | 15A | 24A |
| 使用线径 Wire range | 22-14AWG | 2.5mm² |
| 接触电阻 Contact Resistance | 20MΩ | |
| 绝缘电阻 Insulation resistance | 500mΩ/DC500V | |
| 耐电压 Withstanding voltage | AC2000V/1Min | |
| 温度范围 Temp.range | -40℃~+105℃ | |
| 扭矩 Torque | 5.10kgf-cm/0.5Nm/4.43Lbin | |

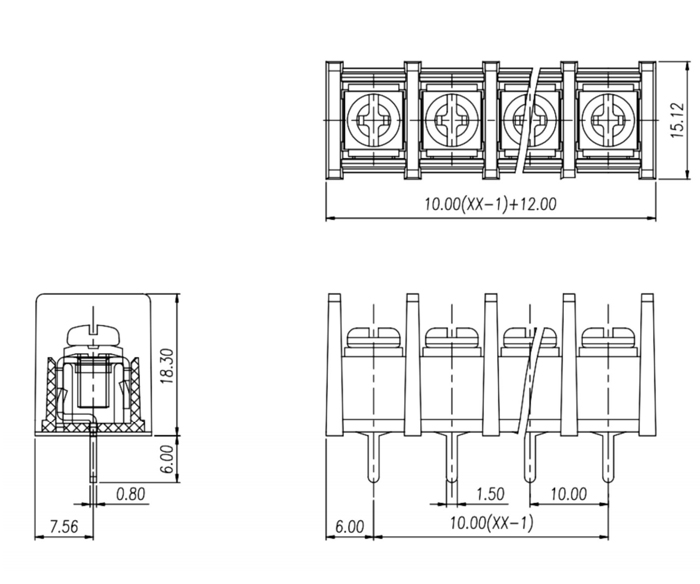

尺寸图
