| 等级 Use Group | B | C | D |
| 额定电压 Rate Voltage [V] | 300 | - | 300 |
| 额定电流 Rated current | 10 | - | 10 |
| 接线范围 Wire Range [AWG] | 26~10 | ||
| 接触电阻 Contact Resistance | 1.6kv | ||
| 过电压类别 Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| 污染等级 Contamination Class | 3 | 2 | 2 |
| 额定电压 Rated Voltage [V] | 160 | 200 | 400 |
| 额定电流 Rated Current [A] | 10 | 10 | 10 |
| 额定冲击电压 Impulse withstand voltage [KV] | 2.5 | 2.5 | 2.5 |
| 导线截面积[硬/柔] Conductor cross section [mm2] | 0.2~1.5 | ||
| 绝缘材料 Insulation Material | PA66 |
| 阻燃等级 Flame relardant rating | UL94V-0 |
| 导体材料 Conductor Material | Copper alloy |
| 导体表面镀层 Plating of conductor surface | Sn Plated |

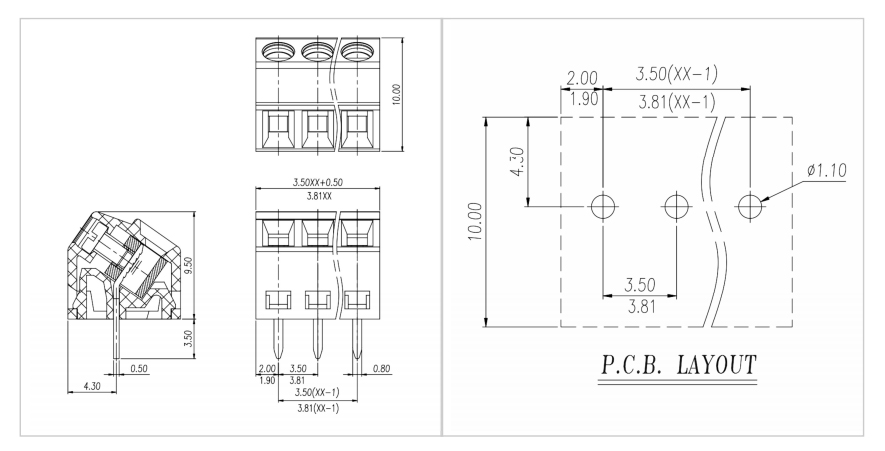

| 间距/极数 Pitch/Poles [mm]/[P] | 3.5，3.81/2~24 |
| 剥线长度 Stripping Length [mm] | 5 |
| 螺丝/扭矩 Screw/Torque(Max)[N.m] | M2/0.2 |
| 工作温度 Operating temperature [℃] | -40~+105 |
| 焊锡温度 Soldering temperature | 250℃/5S |
| 引针尺寸 Pin dimensions [mm] | 0.5*0.8 |
| PCB板孔径 PCB Hole Diameter [mm] | ∅1.1 |
