产品展示
| 等级 Use Group | B | C | D |
| 额定电压 Rate Voltage [V] | 150 | 50 | - |
| 额定电流 Rated current | 7 | 7 | - |
| 接线范围 Wire Range [AWG] | / | ||
| 接触电阻 Contact Resistance | 1.3kv | ||
| 过电压类别 Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| 污染等级 Contamination Class | 3 | 2 | 2 |
| 额定电压 Rated Voltage [V] | 80 | 160 | 200 |
| 额定电流 Rated Current [A] | 10 | 10 | 10 |
| 额定冲击电压 Impulse withstand voltage [KV] | 1.5 | 2.5 | 2.5 |
| 导线截面积[硬/柔] Conductor cross section [mm2] | / | ||
| 绝缘材料 Insulation Material | LCP |
| 阻燃等级 Flame relardant rating | UL94V-0 |
| 导体材料 Conductor Material | Copper alloy |
| 导体表面镀层 Plating of conductor surface | Sn Plated |
| 间距/极数 Pitch/Poles [mm]/[P] | 3.5/2*2~2*24 |
| 剥线长度 Stripping Length [mm] | / |
| 螺丝/扭矩 Screw/Torque(Max)[N.m] | / |
| 工作温度 Operating temperature [℃] | -40~+130 |
| 焊锡温度 Soldering temperature | 285℃/10S |
| 引针尺寸 Pin dimensions [mm] | 0.8*0.8 |
| PCB板孔径 PCB Hole Diameter [mm] | ∅1.4 |

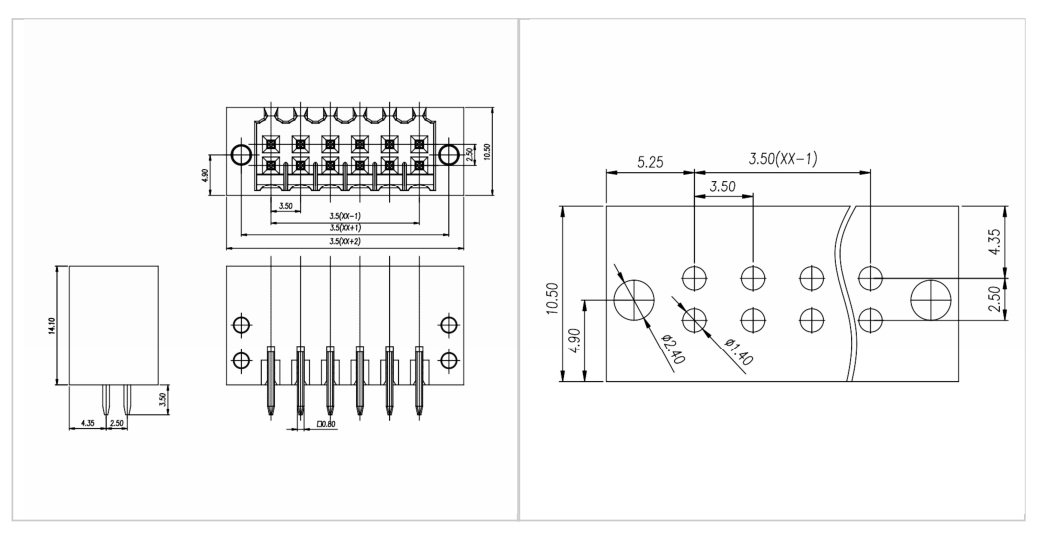

尺寸图/PCB开孔图
